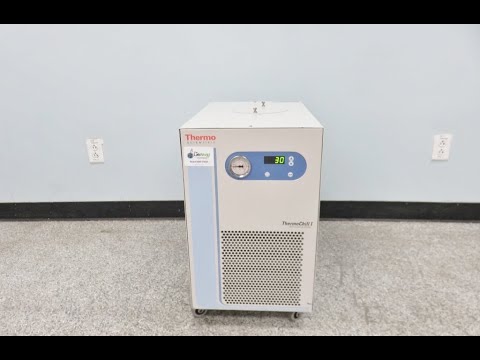

Thermo Fisher ThermoChill I Recirculating Chiller
$1,999
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Thermo Fisher ThermoChill I Recirculating Chiller
The Thermo Fisher ThermoChill I Recirculating Chiller provides simple digital control and has a plugin play design. This circulating chiller takes care of conventional cooling needs and is ideal for routine applications. This compact chiller features an easily accessible fill port, and a pressure gauge for monitoring. Next to the gauge is an intuitive controller with indicator lights to show when cooling is active when the setpoint is being adjusted, the low temp alarm, high temp, and when communication is enabled. The Thermo Fisher ThermoChill I has 2000 watts of cooling power and a capacity of up to 19.0 liter/ 5.0 gallons. The flow rate of this positive displacement pump of 1.4 GPM @ 60 psid (5.3 lpm @ 4.1 bar ). The temperature range is between +5°C to +30°C (+41°F to +86°F) with temperature stability of ±0.5°C.
Specifications
Specifications
ThermoChill I Recirculating Chiller Specifications:
Setpoint Temperature Range | 5°C to +30°C (+41°F to 86°F) |
Low Range Setpoint Temperature | -10 °C to 30 °C (14° F to 86 °F) |
Ambient Temperature Range | 10°C to +35°C (50°F to 95°F) |
Temperature Stability | ±0.5°C |
Setpoint Cooling Capacity 60Hz | 2000 W / 6830 BTU |
Capacity | 19.0 liters (5.0 gallons) |
Positive Displacement Pump | 1.4 gpm @ 60 psid (5.3 lpm @ 4.1 bar) |
Dimensions | 17x25x28 in |
Weight | 160 lbs |
Power | 100-115V, 50/60Hz, 6.9A |
Included
Included
Included with Thermo Fisher Recirculating Chiller
Thermo Scientific ThermoChill I Recirculating Chiller | CAT# 196214010000 | MSRP: $4888.00
User Manual
120V (7A) Power Cord
30-Day Warranty
Notes
Notes
Technical Notes Thermochill system
This Thermo Scientific ThermoChill I Recirculating Chiller has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Thermo Fisher ThermoChill I Recirculating Chiller Video
ThermoChill I Recirculating Chiller Video ID 21835
