Description
Description
Thermo Fluoroskan Ascent Fluorescence Microplate Reader
The Thermo Scientific Fluoroskan Ascent is a compact and flexible fluorometer for fluorometric detection. This plate reader offers you a full range of fluorometric readings for plates 1 to 384 wells in size. This microplate fluorometer’s high sensitivity and fiberless direct illumination produce a sharply focused light beam for both top and bottom reading, and low cross talk gives this fluorometer precise results.
Measurements and functions are controlled from a PC with Ascent software and easily integrated into automated systems. The user-friendly programming of the Ascent software allows users to get fast measurements in fluorometric GFP. This microplate fluorometer also features short reading speeds ideal for cytotoxicity, ion channel, and FRET applications, reading a 96-well plate in about 15 seconds. Users can also add up to 3 dispensers for adding reagents, which come with shaking and incubating capabilities.
Specifications
Specifications
Thermo Scientific Fluoroskan Ascent Specifications:
| Detector Type | Photomultiplier Tube |
| Light Source | Quartz-halogen lamp. Power consumption 30 W |
| Fluorometric Filters | Eight excitation and six emission filters can be installed into the filter wheels, since the emission filter slots 7 and 8 are always reserved for luminometric measurements. Transmittance 30 – 100%, half-bandwidth 6 – 50 nm, depending on the wavelength. |
| Filters | Excitation filters: 355 nm, and 485 nm.
Emission filters: 460 nm, and 538 nm. |
| Filter Wheel | 8 Position |
| Measurement Technology | Fluorescence intensity |
| Plate Type | 1-384 well plates
Can also be programmed for nonstandard configurations. Maximum dimensions 90 mm x 134 mm x 25 mm. |
| Incubator Temperature | Temperature range from RT (25°C) +3°C to 45°C, when the ambient temperature is 25°C. The temperature is selected using Ascent Software. |
| Shaking | Built-in orbital shaker with adjustable speed and diameter. |
| Dimensions | 17x17x14” |
| Weight | 38lbs |
| Power | 100-240vac, 50/60hz,200va |
Included
Included
Included with this Fluorskan Fluorometer
Thermo Fluorskan Ascent Fluorescence Microplate Reader
Fluorescence Microplate Reader
Desktop Running Ascent Software
User Manual
Communication Cable
120V Power Cord (4A)
30-Day Warranty
Notes
Notes
Technical Notes
This plate reader has been fully inspected and comes with current validations. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

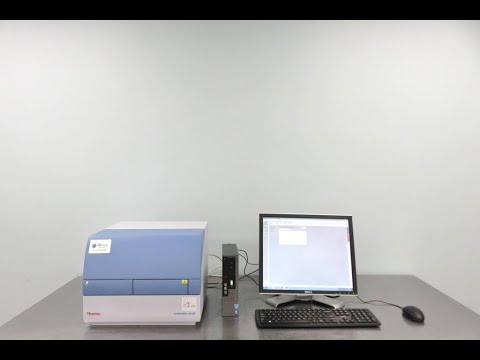

Fluorskan Ascent FL Fluorescence Microplate Reader Video
Thermo Fluoroskan Video ID 20108
