Thermo Forma Ultra Low Freezer -86C 88300A63
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Thermo Forma Ultra Low Freezer
The Thermo Forma Ultra Low Freezer 88300 is a high-performance -86°C Freezer with a slim profile, taking up just a 7.05 sq ft. footprint. The 14.9 cu ft chamber holds up to 300 boxes, and maintains temperatures with 4 heated gasketed doors, that eliminate frost build-up and earth magnet closures that eliminate latches. This ult freezer has a sturdy construction, with reinforced, stainless steel shelves that hold up to 278lbs each, and line voltage protection that bucks or boosts incoming voltage depending on needs and protects components and temperatures.
The Thermo Scientific Forma 88000 features digital control, with a full color LCD touch screen that guides user through the easy to navigate interface. This command center continuously monitors the overall health of the unit, with detailed event logs and alarms in the event of deviation. The on board computer stores up to 15 years worth of data that can be viewed on-screen or downloaded to a portable drive. This touchscreen also allows users of this ultralow temp freezer to protect their settings with password security to prevent accidental tampering. This lab freezer also has remote alarm contacts and two 1 in rear access ports for external probes and instrumentation.
This Ultra-Low Freezer 88300A63 maintains its excellent temperature stability through a brazed plate heat exchanger and joints for more efficient heat transfer, and to reduce leak potential. This upright lab freezer has two operating modes, the energy savings mode that saves 15% energy consumption and still offers great control, or the high-performance mode where the tightest control is necessary.
Specifications
Specifications
Thermo Forma 88000 Series Ultra Low Temperature Freezer Specifications:
Temperature Range | −50° to −86°C |
Warm up Time -80 C to -50C | 237 min |
Peak Variation at -80C | +3.8°/-5.6°C |
Capacity | 421 L/ 14.9 cu. ft. |
Internal Dimensions | 17x26x51” |
Holds | 300 boxes |
Vial Capacity | 30,000 x 2mL |
Capacity Shelf | 278 lb. |
Inner Doors | 4 |
Door Opening Recovery | 28 min. |
Footprint (English) | 7.05 sq ft |
Dimensions (L x W x H) Exterior | 27x36x78 |
Weight | 700 lbs |
Power | 115V, 16A, 60Hz |
Included
Included
Included this Thermo ULT Freezer
Thermo Forma Ultra-Low Freezer Cat #88300A63
Temperature Validation Report
Shelves
120V Power Cord (16A)
30-Day Warranty
Please Note: Orange and white data logger seen in photos is not included. This is our testing equipment to demonstrate a fully working and validation minus eight freezer
Notes
Notes
Technical Notes
This ultra-low freezer has been fully inspected and is operating without issue. Please Note: Orange and white data logger seen in photos is not included. This is our testing equipment to demonstrate a fully working and validation minus eight freezer. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

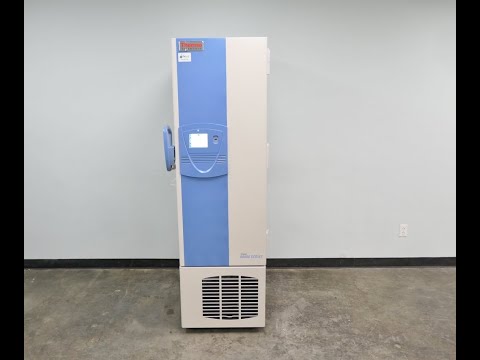

Thermo Forma Ultra-Low Freezer 88300A63 Video
Thermo Scientific Forma 88000 Series ID 13602
