Thermo Haake S7 Recirculating Bath
$1,299
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Thermo Haake S7 Recirculating Bath
The Thermo Haake S7 recirculating water bath provides easy-to-use internal and external circulation. This immersion circulator has a maximum temperature of 150°C and a stability of 0.01°C. Users can select their desired temperature set points from the easy-to-navigate control panel, and the head can swivel 90° for easy viewing. Users can adjust the 3-speed pump for the correct flow rate and bath agitation, up to 20l/min.
The AC150 controller of this Sahara Series chiller has added safety controls such as high-temperature alarms, a low liquid level warning, and an application threshold alarm. The system will power down to protect components if these parameters exceed their setting or the motor overloads. The microprocessor control also allows users to store 5 program set points and select their fluid with predefined temperature limits for added security.
This Thermo HAAKE recirculating water chiller is partnered with an S7 Sahara series bath. This stainless steel circulation bath is 8 liters in capacity and features rugged, corrosion-resistant, and seamless construction. These recirculating water baths are ideal for viscometers, spectrophotometers, thawing, reaction vessels, and metrology applications.
Specifications
Specifications
Thermo Scientific HAAKE Circulator Bath Specifications:
Temperature Controller Range (Metric) | Ambient +13-150°C (302°F) |
Temperature Stability | 0.01°C |
Heater Capacity | 1.2 kW |
Flow Rate (Metric) | 20L/min |
Maximum Pressure | 475 mbar/6.89 psi |
Maximum Suction | 330 mbar/4.78psi |
Programmable set point | 5 |
Bath Temperature Range | Ambient +13°C to 150°C |
Bath Capacity | 8l |
Pump Type | Force Pump, Suction Pump |
Dimensions (L x W x H) Exterior | 10x19x20” |
Work Area Dimension | 6x4x8” |
Electrical Requirements | 100-115V 50/60Hz, 11.3A |
Weight | 37 lbs |
Included
Included
Included with this Thermo Chiller
Thermo Recirculating Bath | CAT# Haake S7 Heated Bath | MSRP: $4884.75
Stainless Steel Lid
120V Power Cord (12A)
30-Day Warranty
Notes
Notes
Technical Notes
This Haake Circulator has been fully inspected and is ready to ship. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

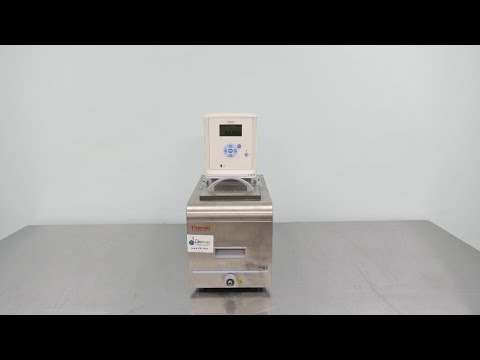

Thermo Circulator Haake S7 Video
Thermo Chiller Haake S7 ID 16421
