Thermo Incubator Shaker IEMS
The Thermo Incubator Shaker IEMS combines orbital shaking and incubation into one space saving useful package. Microplates within the SBS standards go into one of the 3 slots and shake up to speeds of 1400 rpm and heat up to 69 °C. Each of these slots are used to process individual microplates within limitations. The microplate holders are heated by electrical connectors in the microplate carrier. The inner upper heater prevents condensation inside the slot. Temperature uniformity is excellent at the setpoint at 0.6°C across the microplate.
The Thermo incubator shaker heats the microplates gradually across the whole surface thus ensuring assay reproduction. The incubator shaker is programmed and controlled by a centered keyboard. The protocols can be entered individually or the same for each slot. In this one module incubation shaker, all slots have the same incubation temperature and shake at the same RPM. Each slot position shake at the same time from speeds of 400rpm to 1400 in increasing increments of 250rpm. An illuminated LED above the respected slot informs a user of the status in the slot by different colored LED lights. Once the incubator shaker finishes a run is signals the user with an audible tone.
Specifications
Specifications
Specifications of Thermo Incubator Shaker IEMS
| General specifications | |
| Overall dimensions | 400 mm (W) x 450 mm (D) x 200 mm (H)
15.7 in. (W) x 17.7 in. (D) x 7.8 in. (H) |
| Weight (total) | 15 kg [33 lbs.] |
| Mains power supply | 100 ― 120 Vac, 50/60 Hz, nominal
200 ― 240 Vac, 50/60 Hz, nominal |
| Power consumption | 230 VA max. |
| Heat dissipation | 785 BTU max. |
| Operating conditions
|
+10°C ― +40°C, RH 90%
|
| Storage conditions | -25°C ― +50°C, packed in transport packaging |
| Microplate dimensions | Maximum 86 mm (W) x 128 mm (L) x 15 mm (H)
|
| Device interfaces | 1. Serial RS-232C interface for computer
2. Serial RS-485 interface for other device link
|
| Incubator specifications
Performance of the incubator with flat-bottomed microplates with nominal voltages:
|
|
| Programmable temperature range | +14°C – +69°C |
| Controlled incubation range | Ambient plus 3°C to +69.0°C |
| Resolution | 0.1°C |
| Programmable incubation time | Up to 48 hours in steps of 1 second |
| Slot warmup time | < 35 minutes to reach a 65°C ± 1.0°C target temperature when
starting from ambient temperature (approx. 24°C) (on an average 95% of setting value, with 200 μl water/well, with a plate sealer at nominal voltage) |
| Inaccuracy | ± 0.5°C (calculated as the mean of the minimum and maximum
well temperatures of wells A1, A12, H1, H12 and E7, after 1 hour at +65°C, with an ambient temperature of 24°C, with 200 μl water/well, with a plate sealer, and without shaking) |
| Uniformity | < 0.6°C across the entire plate (calculated as the difference
between the maximum and minimum well temperatures of wells A1, A12, H1, H12 and E7, after 1 hour at 65°C, with an ambient temperature of 24°C, with 200 μl water/well, with a plate sealer, and without shaking) |
| Evaporation | 300 mg/plate after 1 hour (at 37°C, without plate sealer) |
| Shaker specifications
Performance of the shaker with flat-bottomed microplates with nominal voltages: |
|
| Frequency | 400 –1400 revolutions per minute (rpm) in steps of 250 rpm
|
| Speed settings | 0 = 0 rpm
1 = 400 rpm 2 = 650 rpm 3 = 900 rpm 4 = 1150 rpm 5 = 1400 rpm
|
| Tolerance | ± 50 rpm |
| Diameter | 1 mm (radius 0.5 mm) |
| Programmable shaking time | Up to 48 hours in steps of 1 second |
| Programmable interval time | Up to 48 hours in steps of 1 second
|
Included
Included
Included with Thermo Incubator Shaker IEMS
- Thermo Incubator Shaker IEMS | 96 Well Microplates | CAT# 5112257
- Three Plate Holders with Covers
- 120V Power Cord
- 30-Day Warranty
Notes
Notes
Notes on Thermo Incubator Shaker IEMS
This microplate incubator shaker has been fully tested by our service team with a clean bill of health.
Video
Video

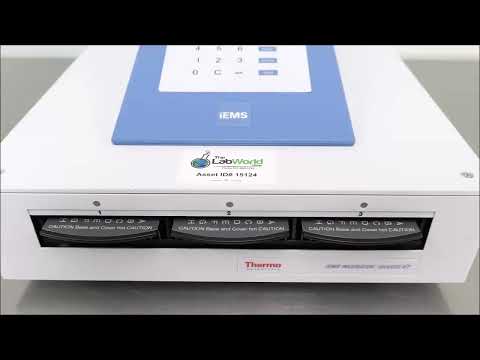

Video of Thermo Incubator Shaker IEMS
Thermo Incubator Shaker IEMS ID 15124
