Thermo Revco UXF Ultra Low Temp Freezer

$4,999

SKU: 24564-24565-24566-24567-24574 Category:
Clear

Included with ID 24564-24565-24566-24567-24574
Thermo Revco UXF -80°C ULT Freezer | CAT# UXF60086D | MSRP: $24,980.00
Temperature Validation Report
Shelves
New Filter Installed
New Backup Battery Installed
208/230V Power Cord
30-Day Warranty
Please Note: This listing is for a fully tested Ultra Low Temp Freezer that’s been fully tested by our service team with a clean bill of health.  The Orange and White Data-Logger seen in the photos is not included, this is our testing equipment to demonstrate a fully working unit.

5 in stock

View cart View Quote List

Description

Thermo Revco UXF Ultra Low Temp Freezer

Thermo Revco UXF600 ULT -80 Freezer is an Ultra-Low Temperature Freezer with secure storage for your most critical of samples. Storage space inside this ultra-low temperature freezer is maximized, without taking up all of your lab space. With a capacity of 28.8 cubic feet, the Thermo Revco Uxf -86c Ult Freezer holds up to 600 sample boxes or up to 245 lbs on reinforced stainless-steel shelving. High-efficiency compressors, easy-to-wash dust filters, and a brazed plate heat exchanger keep this ultra-low temperature freezer running proficiently.

The Thermo Revco UxF ULT Freezer has five polystyrene insulated inner doors to help maintain cabinet temperature during openings and closings. Embedded rare earth magnets within the inner doors hold them closed without the added bulk of latches or exposed magnets. Sample integrity is maintained and the temperature is recovered quickly thanks to a special BTU reserve.

Users have a choice of refrigeration modes, an energy efficiency mode that saves up to 15% energy usage, or a high-performance mode for ultra-tight temperature uniformity. Parameters such as temperature range, refrigeration mode, and alarm settings on the UXF60086D are easily programmed through the digital display on the front of the unit. An onboard computer can store up to 15 years of temperature and event data, and a USB port allows users to download data logs or transfer settings between freezers.

Specifications

UXF60086 -86 ULT Freezer Specifications:

Temperature Range -50° to -86°C
Peak Variation at -80C +2.9/-4.9°C
Warm up Time -80 C to -50C 240 min.
Door Opening Recovery 33 min.
Interior Dimensions 33.5x27x51 in
Volume 28.8 cu. ft./ 815L
Capacity Shelf 245 lbs / 111.13 kg
Box Capacity 600 Boxes
2ml Vial Capacity per Freezer 60000 x 2ml
Footprint (English) 11.38 sq. ft. / 1.06 sq m
Vial to Footprint Ratio 5.272 vials/sq. ft
Dimensions (D x W x H) Exterior 36x44x78 in
Power 208/230v, 9.0 a, 60Hz (UXF60086D model)
Energy Usage 17/21.3kW-hr/day
Weight 854 lbs

Included

Included with Thermo Revco ULT -80 Freezer

Please see individual SKU’s for a complete list of included items.

Notes

Technical Notes on this ULT Freezer

This Thermo Revco UXF ULT Freezer has been fully tested by our service team with a clean bill of health.  Orange and White Data-Logger seen in photos is not included, this is our testing equipment to demonstrate a fully working unit. All of our lab equipment comes backed by our standard warranty

Video

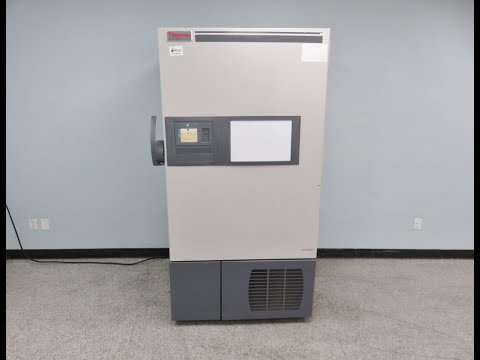

Thermo Revco UXF60086 ULT -80 Freezer Video
