Water Jacketed CO2 Incubator
The VWR Water Jacketed CO2 Incubator provides reliable incubation with built-in safeguards for thermal stability and against contamination. This CO2 incubator has a temperature-controlled water jacket set in triple-walled construction to help guard against the loss of heat. This water-jacketed incubator is a great choice for labs looking to protect temperatures against temperature changes resulting from power failures or shifts in the ambient environment.
The 6.5 cu ft incubator features HEPA filtration, cycling the air completely every 60 seconds, for cleanroom Class 100 conditions. This laboratory incubator also features fan-assisted airflow with a TC or IR CO2 sensor for a uniform growth environment. The interior of this CO2 incubator is stainless steel for easy cleaning, with a stainless water pan and removable stainless shelving that’s easily placed without the need for extra tools. The VWR Water Jacket CO2 Incubator also has a tempered glass door to help maintain the environment, while allowing users to monitor samples, and uses microprocessor control to set and maintain parameters and the program alarms.
Specifications
Specifications
Water Jacketed CO2 Incubator Specifications:
| Water Jacket Volume | 11.7 gal. (43.5 L) |
| Interior Volume | 6.5 cu. ft. (184.1 L) |
| Temperature Range | 5°C above ambient to 55°C (131°F) |
| Temperature Uniformity | ±0.3°C @ 37°C (98.6°F)* |
| CO2 | |
| CO2 Control | ±0.1% |
| CO2 Range | 0-20% |
| Inlet Pressure Required | 15 PSIG (1.0 bar) |
| CO2 Sensor | TC or IR see model |
| Readability & Setability | 0.1% |
| Tracking Alarm | User-programmable high/low |
| HUMIDITY | |
| rH | Ambient to 95% @ 37°C (98.6°F) |
| Humidity Source | 3L (3.2 qt) standard pan |
| Interior Dimension | 21.3 x 26.8 x 20” |
| Exterior Dimensions | 24 x 26 x 39” (single unit)
24 x 26 x 72″ (double stack) |
| Weight | 275lbs |
| Power | 115V, 60 hz, 3.6A, 1Ph |
Included
Included
Included with Water Jacketed CO2 Incubator
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Notes on Water Jacketed CO2 Incubator
Water jacket incubator has been fully tested by our service team with a clean bill of health. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Video of Water Jacketed CO2 Incubator
ID 25505

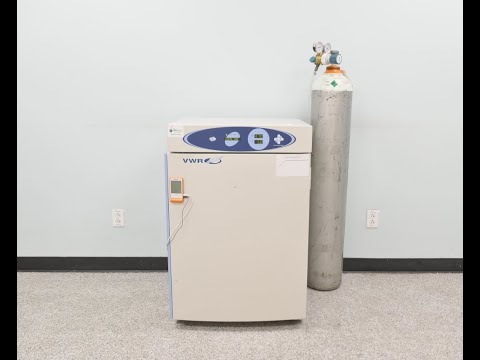

VWR Water Jacket Incubator Video ID 25505
ID 25291

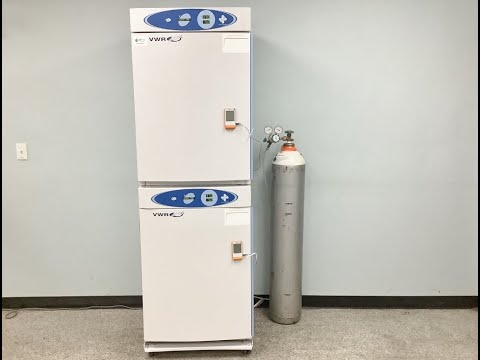

VWR Water Jacketed CO2 Incubator Video ID 25291
ID 18044

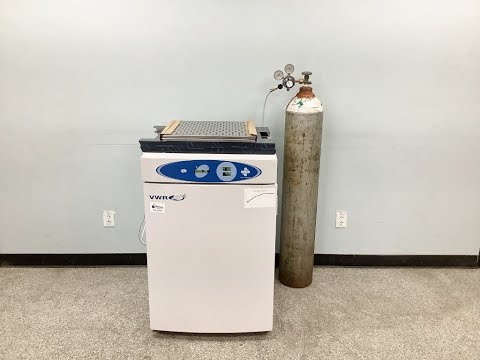

CO2 Water Jacketed Incubator ID 18044
