Wave Bioreactor 20EH
The GE WAVE Bioreactor 20EH is a dual-zone cell culturing system that aids in the production of the batch, fed-batch, and perfusion cultures. This wave rocker system consists of a base unit with digital control, and a 20-liter warning tray with right and left heating options. This tray holds two 2L cell bags or a single 20L cell bag.
Users can adjust the rocking angle of this wave bag reactor between 2-10 degrees using the upfront dial knob. Heating functions are integrated into the controls, with toggle switches to activate each side’s heating, and a digital control to set the temperature up to 37°C. Heating is monitored with a Pt-100 sensor for accurate measurements.
Speed on this wave bioreactor system is controlled on the left side, with digital input, and can be set between 6-30 rocks a minute. There is also a handy guide on the tray with the minimum speed required per cell bag size.
Specifications
Specifications
Wave Bioreactor 20EH Specifications:
| Working Volume Range | 100ml to 10 liters (volume is determined by tray used) |
| Tray Dimensions | 19 x 25” |
| Rocking Angle | 2-10° |
| Acoustic noise level | < 70 dB A |
| Temperature Range | Up to 37°C |
| Dimensions (h × w × d) | 22x28x9 |
| Weight (lbs) | 60 lbs |
| Power | 115 AC, 0.8a |
Included
Included
Included with this Wave Bag Bioreactor
Wave Bioreactor 20EH
20L Stainless Steel Lid with Heat Sensor
120V Power Cord
User Manual
30-Day Warranty
Notes
Notes
Technical Notes
This wave bioreactor has been fully inspected and is heating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

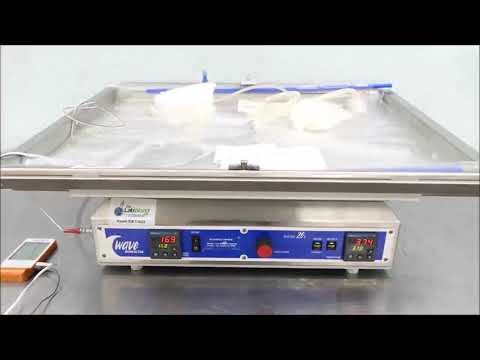

GE WAVE Bioreactor 20EH Video
Wave Bioreactor 20EH ID 13622 for sale
