Panasonic TwinGuard Ultra Low Freezer -86°C MDF-U700VX
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Panasonic TwinGuard Ultra Low Freezer -86°C MDF-U700VX
The Panasonic TwinGuard MDF-U700VX Ultra Low Freezer provides peace of mind with a unique cooling system, advanced insulation, and secure long-term storage you can count on. This 728L upright lab freezer features dual refrigeration systems comprising two compressors that operate independently and could be partnered with an optional LN2 or Liquid COS backup system. Temperatures and alarms for this Panasonic ULT freezer are controlled from the eye level, upfront, brightly lit LCD lets you set a temperature between -50 to -86°C. Should one of the compressors fail, this laboratory freezer will maintain at least -65°C to protect your samples and allow you more time to correct a problem or perform maintenance. This ultra-low temperature freezer has a user-friendly design, with a vacuum release port to compensate for the pressure created by the temperature difference for a smooth door opening.
The Panasonic TwinGuard MDF-U700VX Ultra-Low Freezer features an intelligent ECO operation mode that saves up to 15% energy. While in ECO mode, this -86°C Freezer will monitor the freezer load status and alternate between the two compressors to manage the load. The Panasonic Lab Freezer uses vacuum insulation that reduces cabinet wall thickness, giving you 30% higher capacity than freezers with conventional insulation, allowing you to hold up to 528 2-inch boxes. This ULT freezer includes various alarms and signals to alert users to changes in temperature, door left ajar, power failure, and when a component needs replacement, to help keep samples secure. The door of this upright lab freezer can be locked for added security.
Specifications
Specifications
Panasonic -86°C Ultra-Low Freezer MDF-U700VXC Specifications:
Temperature Control Range | -50°C to -86°C |
Capacity | 728L / 25.7 cu ft |
Total Boxes | 528 Boxes (2-inch) or 336 Boxes (3-Inch) |
Noise Level | 53 dB(A) |
External Dimensions | 42 x 43 x 80 “ |
Internal Dimensions | 33 x 21 x 55 “ |
Weight | 756 lbs |
Power | 220 V, 60 Hz, 6A, 1310W power consumption |
Included
Included
Included with Sanyo -86°C Ultra-Low Freezer MDF-U700VXC
Panasonic Twin Guard -80 Freezer | CAT# MDF-U700VXC-PA
Temp Validation Report
Shelves
208/230V Power Cord (6A)
30-Day Warranty
Please note: orange datalogger seen in photos is not included. This is our testing tool to demonstrate a fully working system.
Notes
Notes
Technical Notes
This Ultra Low Temperature freezer has been thoroughly tested and is operating without issue. Please note: orange datalogger seen in photos is not included. This is our testing tool to demonstrate a fully working system.
Video
Video

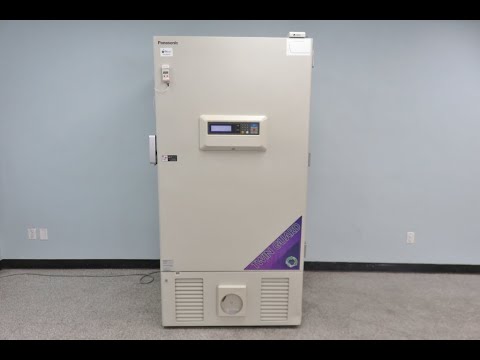

Sanyo -86°C Ultra-Low Freezer MDF-U700VXC Video
Panasonic Twin Guard Ultra Low Temperature Freezer Video ID 22153
